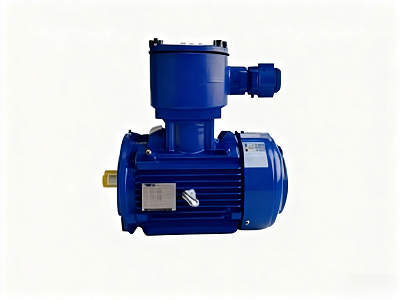

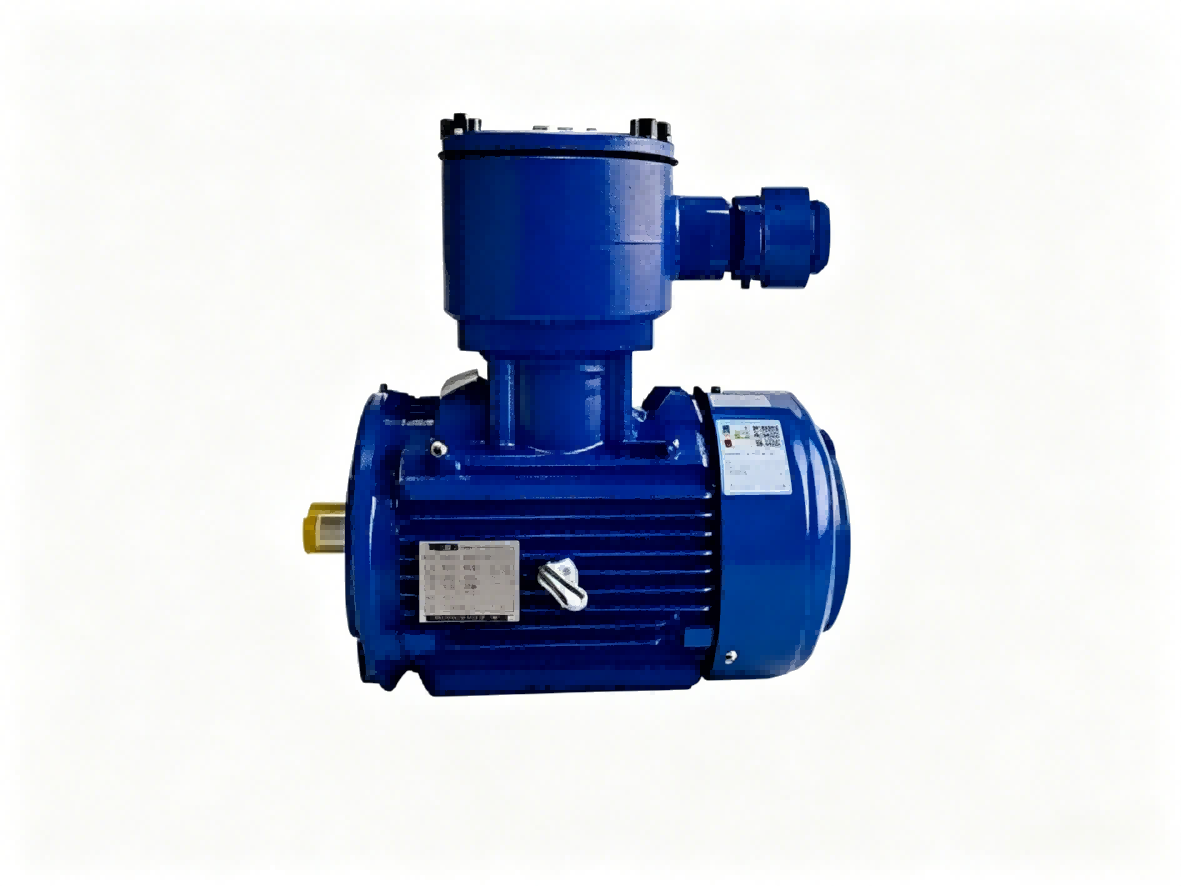

The TEBV (EFEY/EFEU) High-Cooling Frequency Conversion Explosion-Proof Motor, developed and manufactured by TECO, can reach Level 3 energy efficiency (GB3/IE3). It supports frequency conversion operation and is equipped with either IC411 self-ventilated cooling or IC416 independent cooling fan, which can meet the working conditions of different loads.
| Model | TEBV (AEEV/AEUV) | Brand | TECO |
Technical Data of TECO Frequency Conversion Explosion-Proof Motor：
- Type: Flameproof Three-Phase Asynchronous Motor
- Rated Voltage: 380V or other voltages (below 690V)
- Rated Frequency: 50HZ, 60HZ
- Output Power: 0.18KW～355KW
- Duty Cycle: Continuous duty cycle SF1.0, optional (SF1.0～1.3)
- Frame Size: 80M～355KW
- Protection Class: Exd IIB T4 Gb: IP55;Exd IIC T4 Gb (Frame #80～255), Exd II (H2) Gb (Frame #250～355): IP55, IP56, IP65, IP66
- Cooling Method: IC411, IC416
- Insulation Class: Class F Insulation
- Temperature Rise: Class B stator winding temperature rise (measured by resistance method, not exceeding 80K when S.F: 1.0)
Applicable Conditions：
- Power Supply Conditions: Voltage fluctuation within ±10%, frequency fluctuation within ±5%, maximum comprehensive fluctuation of voltage and frequency within 5% (with frequency fluctuation not exceeding ±5%).
- Application Site: Locations in Zone 1 and Zone 2 of explosive gas environments.
- Ambient Temperature: -20～50℃ (other ambient temperatures available as an option).
- Ambient Humidity: Relative humidity below 90% (no condensation allowed).
- Altitude: Below 1,000 meters above sea level.
- Transmission Method: Pulley or coupling. However, for 2-pole motors with power of 45KW and above, only coupling transmission can be used.
- Rotation Direction: Bi-directional rotation. When the power supply phase sequence is consistent with the marking letters on the motor outlet terminal, the rotation direction is clockwise when facing the shaft extension end.
- Starting Method: Direct full-voltage starting or Y-△ starting.
Requirement: When installing the coupling or pulley, use the tapped hole at the shaft end for press-fitting installation. External force impact on the shaft end for installation is prohibited.
