| Model | TEDV3(EVEVXQ/EVVVXQ) | Brand | TECO |

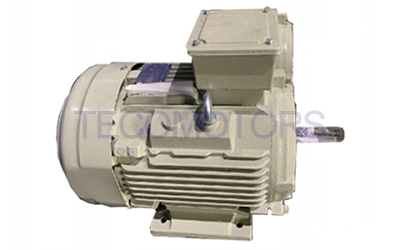

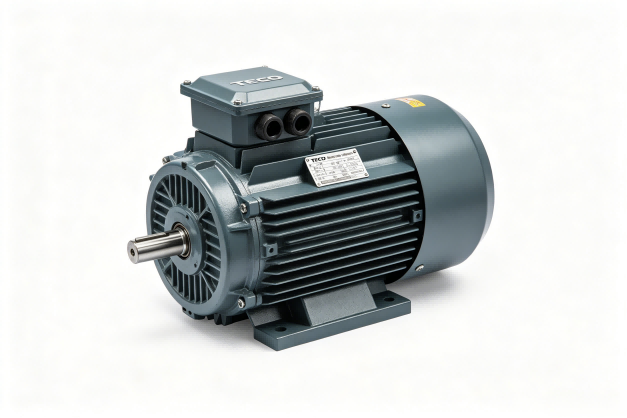

Product Parameters of Force-Cooled Variable-Frequency Dust Explosion-Proof Motors：
- Unified Model of Dust Explosion-Proof Motors: TEDV3 (EVEVXQ/EVVVXQ)
- Output Power: 0.18KW～400KW
- Energy Efficiency Class: Class 3 Efficiency (IE3/GB3)
- Number of Poles: 2P-8P
- Rated Frequency: 50HZ
- Rated Voltage:
- Fr#80-Fr#100: 220V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 200/346V, 220/380V, 230/400V, 240/415V, 254/440V, 265/460V, 277/480V, 220-240/380-415V, 380-415V;
- Fr#112-Fr#132: 220V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 525V, 660V, 690V, 200/346V, 220/380V, 230/400V, 240/415V, 254/440V, 265/460V, 277/480V, 380/660V, 400/690V, 220-240/380-415V, 380-415V;
- Fr#160~Fr#355: 220V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 525V, 660V, 690V, 1140V, 200/346V, 220/380V, 230/400V, 240/415V, 254/440V, 265/460V, 277/480V, 380/660V, 400/690V, 660/1140V, 220-240/380-415V, 380-415V.
- Torque Control:
- Variable Torque (VT): 5-50 Hz | Constant Torque (CT): 25-50HZ | Constant Power (CP): 50-100 Hz
- However, for 2-pole motors above 45KW: Constant Power 50-60HZ | For 4-pole motors above 200KW: Constant Power 50-60HZ
- Frame Size: 80M～355
- Duty Cycle: Continuous Duty SF1.0
- Protection Structure: IP65
- Insulation Class: Class F
- Cooling Method: IC416
- Mounting Methods:
- AFMY: Horizontal foot-mounted B3 (IM 1001) | AFMU: Horizontal flange-mounted B5 (IM 3001) | AFMY: Horizontal foot and flange-mounted B35 (IM 2001) | AFMU: Vertical flange-mounted V1 (IM 3011).
Motor Applications:
- Environmental Conditions:Ambient Temperature: -20℃ ~ 40℃、Relative Humidity: Less than 90% (non-condensing)、Altitude: Not exceeding 1,000 meters
- Hazardous Locations: Suitable for Zone 21 (dust environment). Explosion-proof rating: Extb IIIC T135℃ Db IP65
- Power Supply Conditions:Voltage: ±10%、Frequency: ±5%、The maximum combined variation of voltage and frequency is 10%, with the frequency variation not exceeding ±5%
- Starting Method: Full-voltage direct start or Y-Δ (star-delta) start
- Driving Method: Direct coupling
- Rotation Direction: Clockwise, also suitable for bidirectional operation
