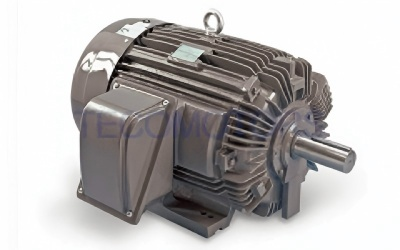

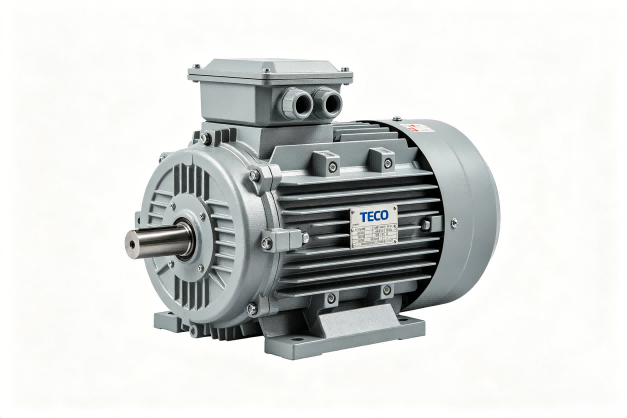

TECO’s Dust Explosion-Proof Variable-Frequency Motor.It has obtained UL certification with the certification certificate number E84757, and its explosion-proof rating is Class II, Group E, F and G. The motor models are AEHHXU/AEHHXF/AEUHXF.
| Brand | TECO | Model | AEHHXU/AEHHXF/AEUHXF |
Product Parameters of UL-Certified Dust Explosion-Proof Variable-Frequency Motor：
- Brand: TECO-Westinghouse
- Model: AEHHXU/AEHHXF/AEUHXF
- Horsepower (HP): 1–150 HP
- Speed: 3600, 1800, 1200 rpm (revolutions per minute)
- Frequency: 60 Hz
- Rated Voltage: 230V/460V (usable at 208V); 150 HP model is only available with 460V
- Ingress Protection (IP) Rating: IP55
- Explosion-Proof Rating:Class I, Division I, Group D、Class II, Groups E, F, G; Temperature Code T2D/T3B
- UL Certification Number: E84575
- CSA Certification Number: 64671
- Design Standard: NEMA Premium Efficient Design
- Duty Cycle: Continuous Duty with SF1.15 (Service Factor 1.15)
- Insulation Class: Class F
- Temperature Rise Class: Class B
- Environmental Conditions:Ambient Temperature: 40℃、Altitude: Not exceeding 1,000 meters
Application of UL-Certified Dust Explosion-Proof Variable-Frequency Motors：
- Grain Elevator
- Water Pump
- Blower
- Applications with Explosive Gases
- Applications with Explosive Dust/Particles
